Typical Installed Range
Standard aluminum builds commonly fall between $6,500 and $18,000 installed, while larger or more customized louvered pergolas can reach $32,000 or more.
Guides
How Much Does It Typically Cost to Install a Louvered Pergola in Phoenix?
Phoenix Shade Structures Co. explains why an installed louvered pergola in the Phoenix area typically costs $6,500 to $32,000, with common installed pricing between $45 and $200 per square foot. Size, aluminum profile, motorization, footing conditions, electrical work, and site access determine where a project falls within or beyond that range.
Quick Summary
- A standard aluminum louvered pergola generally costs $6,500-$18,000 installed, or $45-$125 per square foot.
- Motorized louvered roofs run $65-$200 per square foot; larger custom builds can range from $25,000 to $150,000+.
- A 12x12 structure typically costs $6,500-$18,000, while a 20x20 custom motorized unit can exceed $55,000.
- Aluminum profile, motors, footings, electrical wiring, permitting, access, and Phoenix-area soil conditions all affect the final quote.
Louvered Pergola Cost Essentials
Manual vs Motorized Louvers
Manual crank or lever systems generally cost $40-$90 per square foot installed. Motorized systems cost $65-$200 per square foot after drive motors, controllers, and weatherproof wiring are included.
Confirm the Complete Quote Scope
Compare quotes by checking whether engineering, permitting assistance, footing work, assembly, and the final electrical hookup for a motorized roof are included.
Louvered Pergola Cost Details

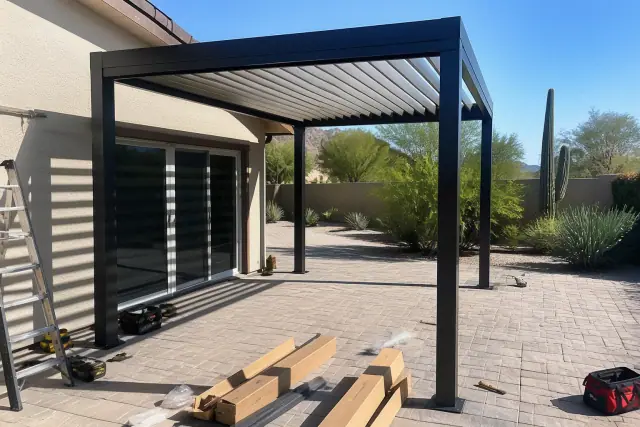

12x12 Aluminum Louvered Pergola
A 144-square-foot patio structure provides enough scale to compare manual and motorized configurations within a $6,500-$18,000 installed range. Adjustable aluminum blades make the coverage and control difference easier to understand.

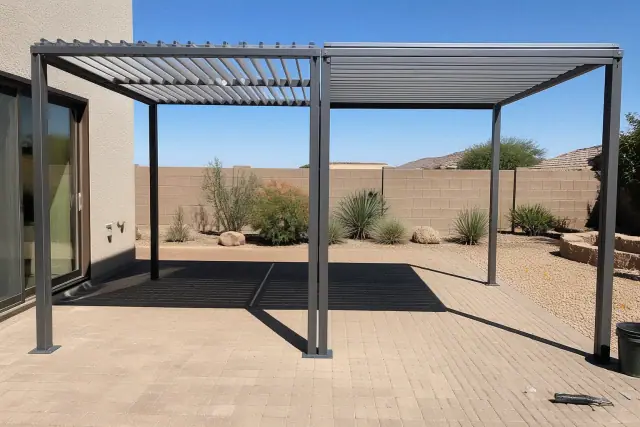

Roll-Formed vs Extruded Louvers
Roll-formed profiles cost less, while heavier-gauge extruded aluminum better resists Phoenix UV exposure, heat cycling, dust storms, and monsoon winds.

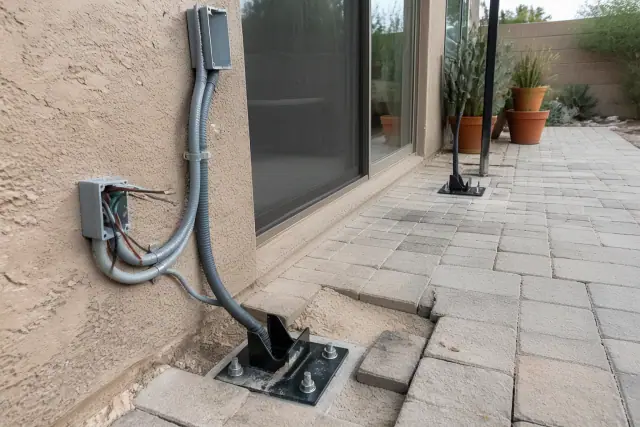

Motorized Roof Wiring and Footings
Drive motors, weatherproof wiring, and engineered posts anchored to existing concrete or new footings are major hidden cost components. Together, they help a louvered roof handle summer temperatures above 110°F and sudden monsoon gusts.
Installed Cost by Size
12x12 Standard Build
At 144 square feet, a 12x12 aluminum louvered pergola generally runs $6,500-$18,000 installed. Aluminum grade and manual versus motorized operation create most of the spread.
16x16 Large-Patio Build
A 16x16 structure covers 256 square feet and typically costs $11,500-$32,000 installed. This footprint can cover dining and lounge zones on larger patios in Arcadia and Ahwatukee.
20x20 Custom Motorized Build
A 20x20 build covers 400 square feet and usually lands between $18,000 and $55,000+. Larger fully custom motorized structures can run $25,000-$150,000+, with remote or app controls, sensor packages, and expanded spans raising the price.
Foundation and Electrical Add-Ons
Foundation installation alone can add $500-$2,500, depending on new footings versus anchoring to existing concrete. Motor wiring, integrated lighting, rain sensors, and wind-safety controls add mechanical and electrical scope.
Louvered Pergola Cost Comparison
Phoenix louvered pergola installed-cost guide
| Project scope | Installed cost | Main price variable |
|---|---|---|
| 12x12 (144 sq. ft.) | $6,500-$18,000 | Manual or motorized louvers and aluminum grade |
| 16x16 (256 sq. ft.) | $11,500-$32,000 | Patio coverage, access, and footing work |
| 20x20 (400 sq. ft.) | $18,000-$55,000+ | Motor count, controls, and custom spans |
| Custom site-engineered build | $13,000-$55,000 | Attachment points, new footings, and finish options |
| Manual louver system | $40-$90 per sq. ft. | No motor hardware or electrical wiring |
| Motorized louver system | $65-$200 per sq. ft. | Drive motors, controls, sensors, and weatherproof wiring |
What Louvered Pergola Cost Covers
Installed cost covers aluminum framing and louvers, engineering, the moving roof mechanism, footing work, assembly, anchoring, and electrical work for motorized units. Materials alone typically run $20-$60 per square foot, while labor accounts for 30-45% of the total. Louvered panel roofing runs $40-$150 per square foot, and polycarbonate used for hybrid shade adds $8-$20 per square foot.
Factors That Change the Price
Roll-formed aluminum louvers generally run $40-$60 per square foot, while extruded aluminum runs $60-$150 per square foot; aluminum systems overall commonly fall between $45 and $150 per square foot. Caliche in Maricopa County, sloped lots, and older slabs such as those found in Encanto or Coronado can increase grading, excavation, and footing work. Attached patio covers may reduce framing and footing needs by using the house as a support wall. Integrated solar panels add several thousand dollars depending on panel count and battery integration, an option made more relevant by the area's 300-plus sunny days a year.
Common Follow-Up Questions
Is a louvered pergola worth it? For homeowners who regularly use a patio from October through May and want adjustable summer shade, it can extend useful outdoor time, but a lower-cost fixed cover may suit a lightly used backyard. Motorized roofs cost more upfront and need occasional calibration, lubrication, and yearly inspection of seals and drive components. A regular open-lattice pergola runs $2,100-$6,000, compared with $6,500-$32,000 or more for a louvered roof; standard non-louvered structures run $10-$40 per square foot versus $40-$200 per square foot for louvered systems. Material-only kits may cost 20-30% less and labor-only work runs $15-$40 per square foot, but the owner must coordinate assembly, permitting, and footing work.
Plan Your Pergola
Get a Site-Specific Estimate
A site visit measures the patio, checks soil and slab conditions, confirms City of Phoenix setback requirements, and matches coverage needs to material and control options. The resulting line-item quote separates structural, mechanical, and finish work while including engineering, permitting assistance, footings, and final electrical hookup for motorized units.
